8 Towers

Ordos 100 |  Inner Mongolia | 2010
[ AIA/BSA Unbuilt Architecture & Design Award ]

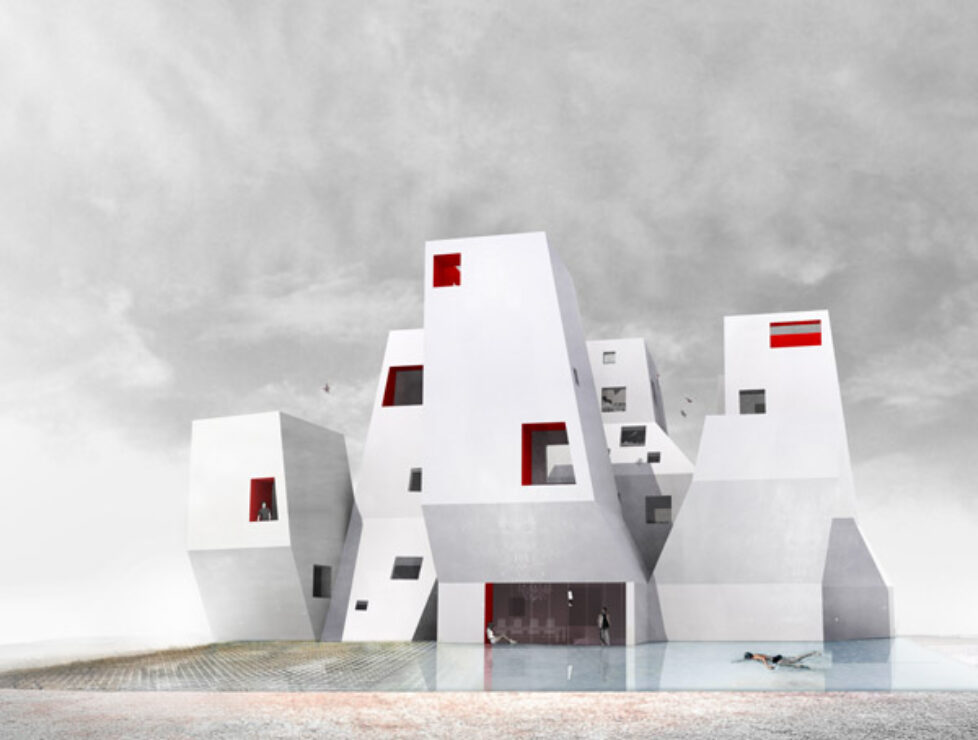

ordos100_south

SsD was included in a gobal selection of 100 architects curated by Ai WeiWei and Herzog and deMeuron.  The abstraction of the desert site is taken as an opportunity to develop new prototypical relationships between program and efficient energy use.  Each of the 8 towers contains a separate and distinct program: entry, living, food, exercise, sleeping, and bathing. Through the distortion of each tower’s geometry, the volumes join or separate creating strategic connections and segregations so that only occupied portions of the building need to consume energy.  The organization also creates experiential differences between rooms that are necessarily similar in size, while creating a high level of both porosity and privacy.  Finally, the strategy heightens the identity and iconography of each program promoting an intensity of accidental or intentional relationships between differing activities.

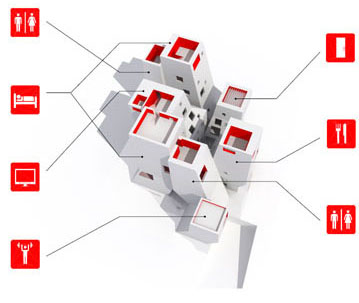

each tower has a distinct program   8 towers - minimal occupancy

Different zones of the home are used at different times of day. dynamically adapting building systems to these patterns of use allows for greater energy-efficiency.

ordos100_sectbath

Separating the program into separate towers forms new spatial relationships while maximizing light and air to all rooms.

ordos100_front-living

The towers rise out of the desert – clay pots are integrated into the landscape design to manage runoff during flash rain storms (above).  Although the  towers are in dense proximity to form an advantageous microclimate, the angled walls allow clear views to the sky (right).

ordos100_structure

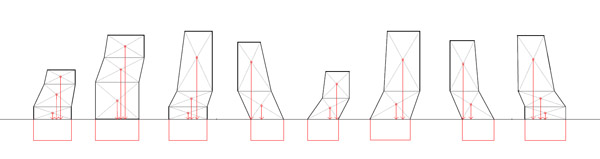

structural diagram: towers are able to lean by keeping the centroids of volumes within foundation line



dot_grey
PROJECT CREDITS:

architect
Jinhee Park AIA, John Hong AIA/LEED (principals in charge), Brett Albert, Frederick Peter Ortner, Matthew Allen, Caroline Lang, Clara Wong, Bao Wei

structural engineer
Paul Kassabian, SGH
