Life Within the Wall

Life Within the Wall

Edersee, Germany |  2017
Ways of Life | Experimenta Urbana, Co-Event Documenta ’14

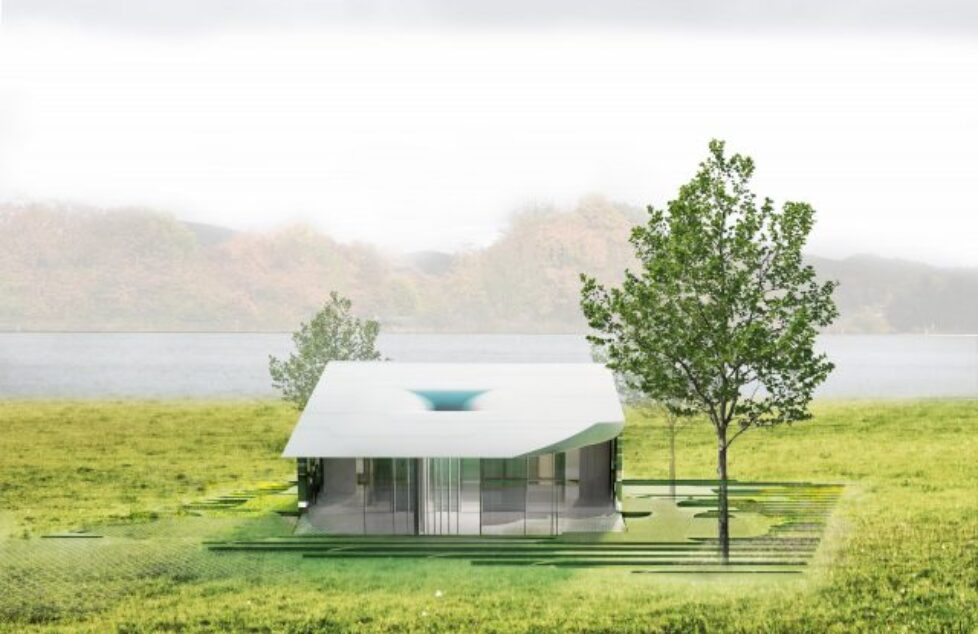

EXTERIOR- STREET_00

The project takes a new approach to the conventional building envelope and creates ways of life between itself. Up to 10% of a normal building footprint is occupied by walls as dead space. By delaminating each individual layer of a wall and window assembly, we are able to build on the characteristics of each part and create new spatial conditions. Louvers, flyscreens, cladding, double glazing, framing, internal linings, curtains and blinds create a series of layers which allow for increased material and climatic efficiency.

Our principle is that each assembly layer, each material, each fitting, can be of greater value and use than just for its sole intended purpose.

concept-animated-diagram_00-small

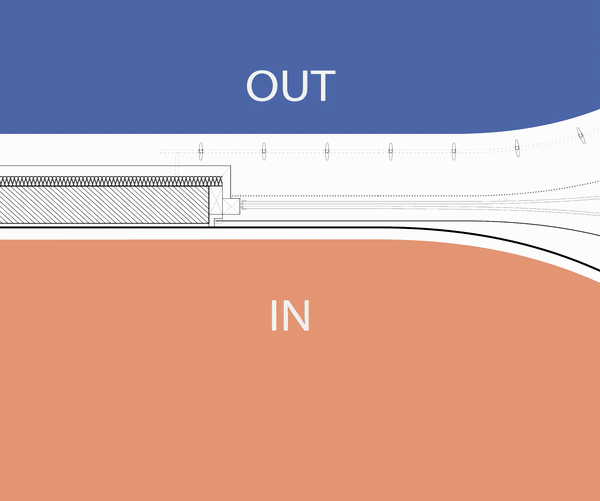

Delamination of the wall: claiming unused space between components making new spaces at a micro scale.

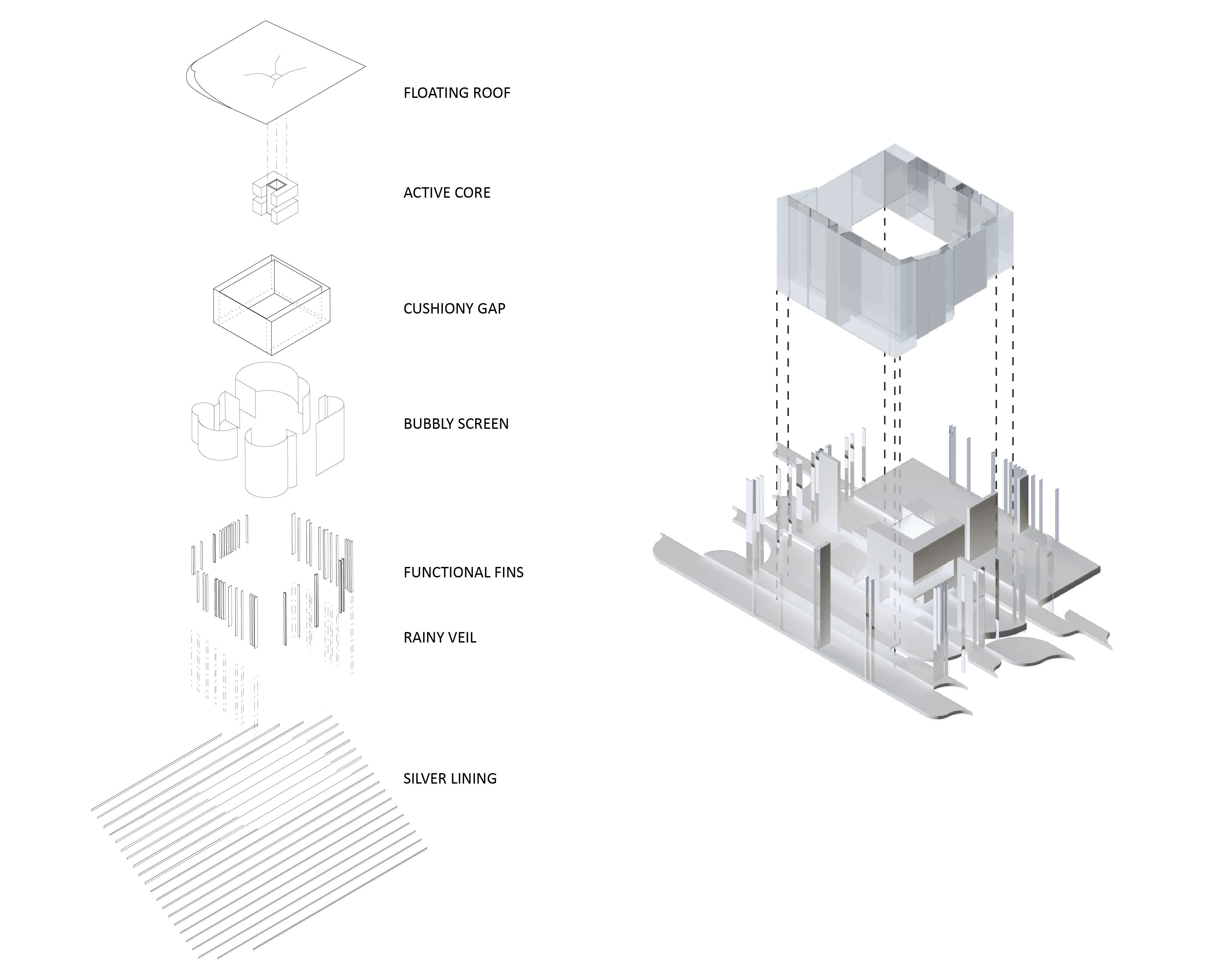

Axon_forwebsite-01

Each layer creates a particular range of spatial and climatic conditions.

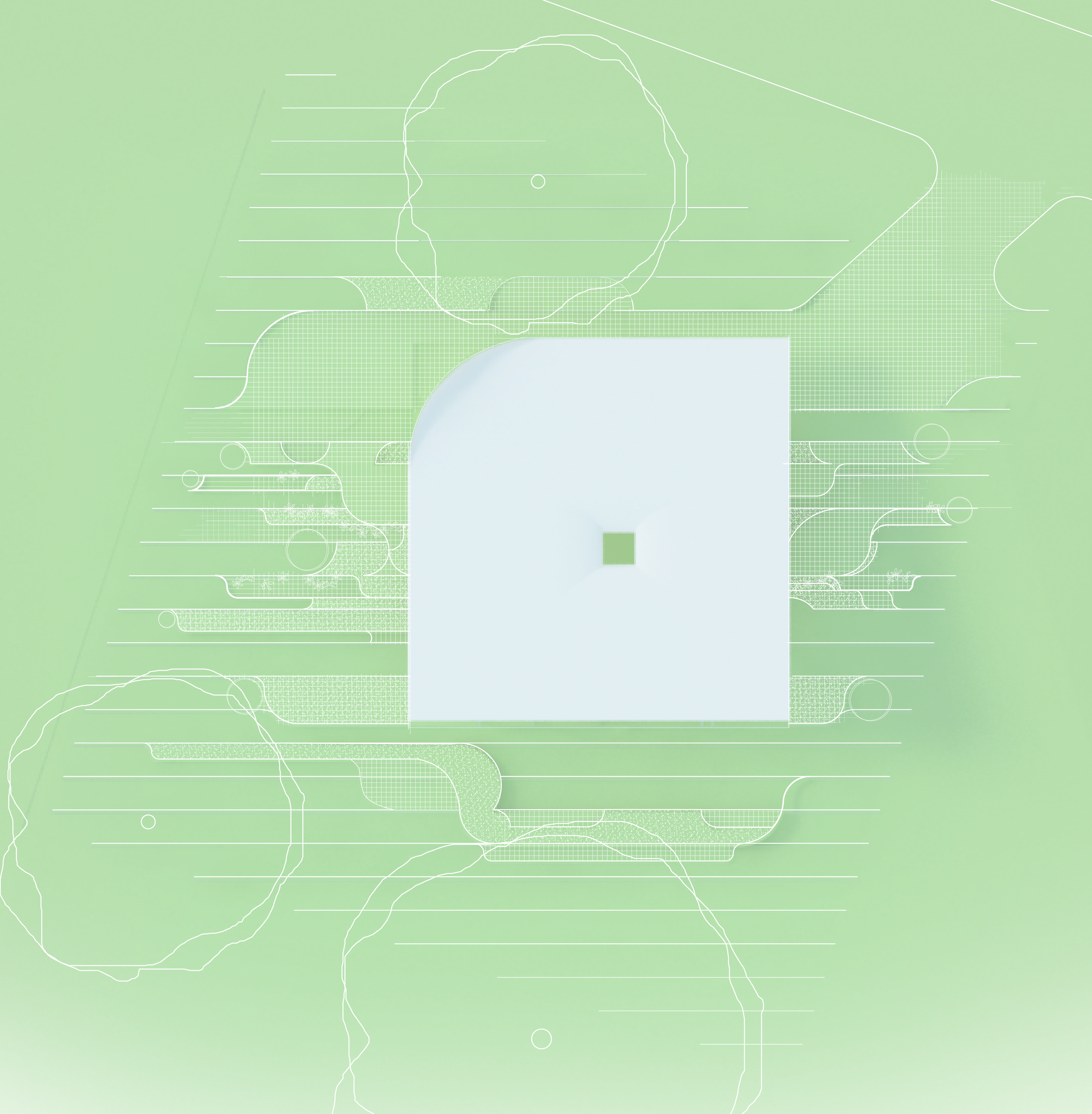

170414_SITEPLAN-02

The sloped ground is controlled through a simple field of stainless steel garden edge strips. These are manipulated to align with undercover and internal spaces, allowing program to extend and maximize use of the entire site for every way of life in every season.

170621_SCENARIOS-DIAGRAM_00-small

The design is a prototype which uses an internal footprint of only 39m2. Occupation is flexible with the use of two separate layers of glazing. An external layer with hinge doors activates and transforms external spaces; open the living room door to create an outdoor cinema. Play spaces, vegetable ‘pantries’ and extended dining area expand out of the internal programs to 100m2.

By using such an approach, we estimate we can save up to 25% of cladding, internal linings and internal framing compared to a conventional house of a similar size.

170417_Section

INTERIOR-2-01

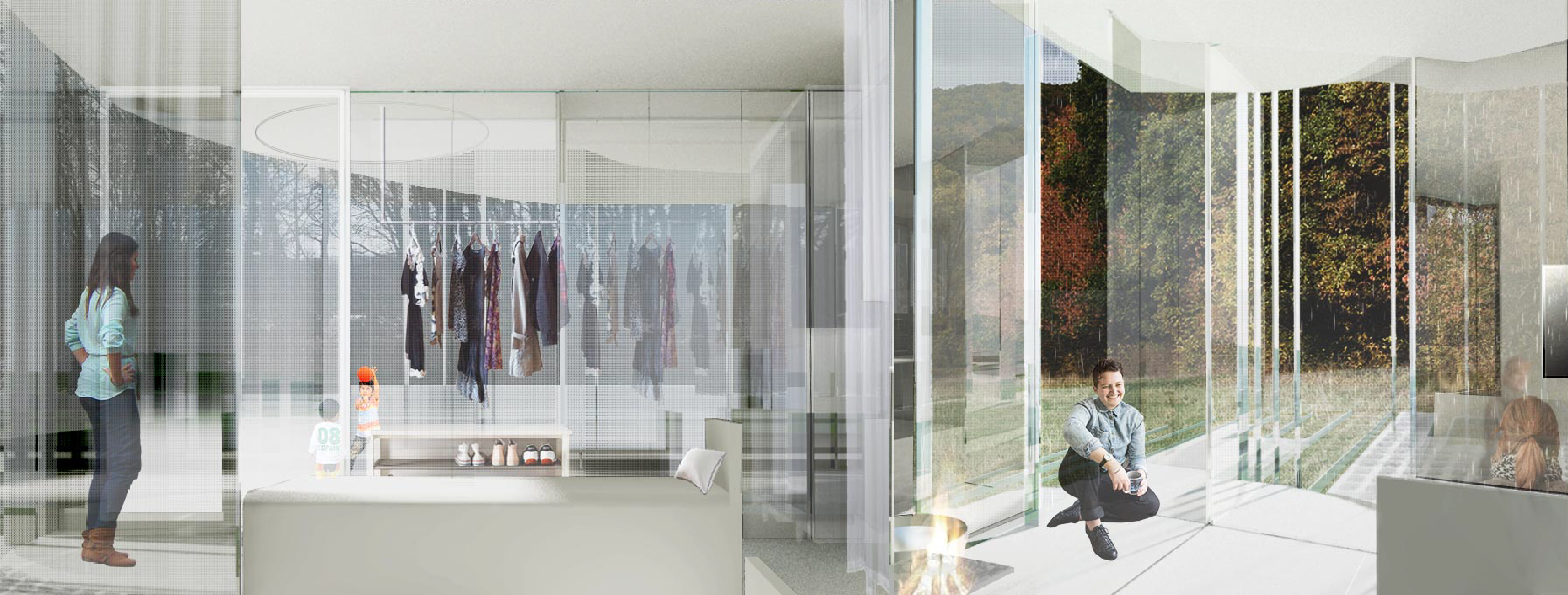

View of the sleeping area, where kids play in the bubbly screen outside while mom watches through her cushiony closet in the bedroom

INTERIOR FRONt BEDROOM3

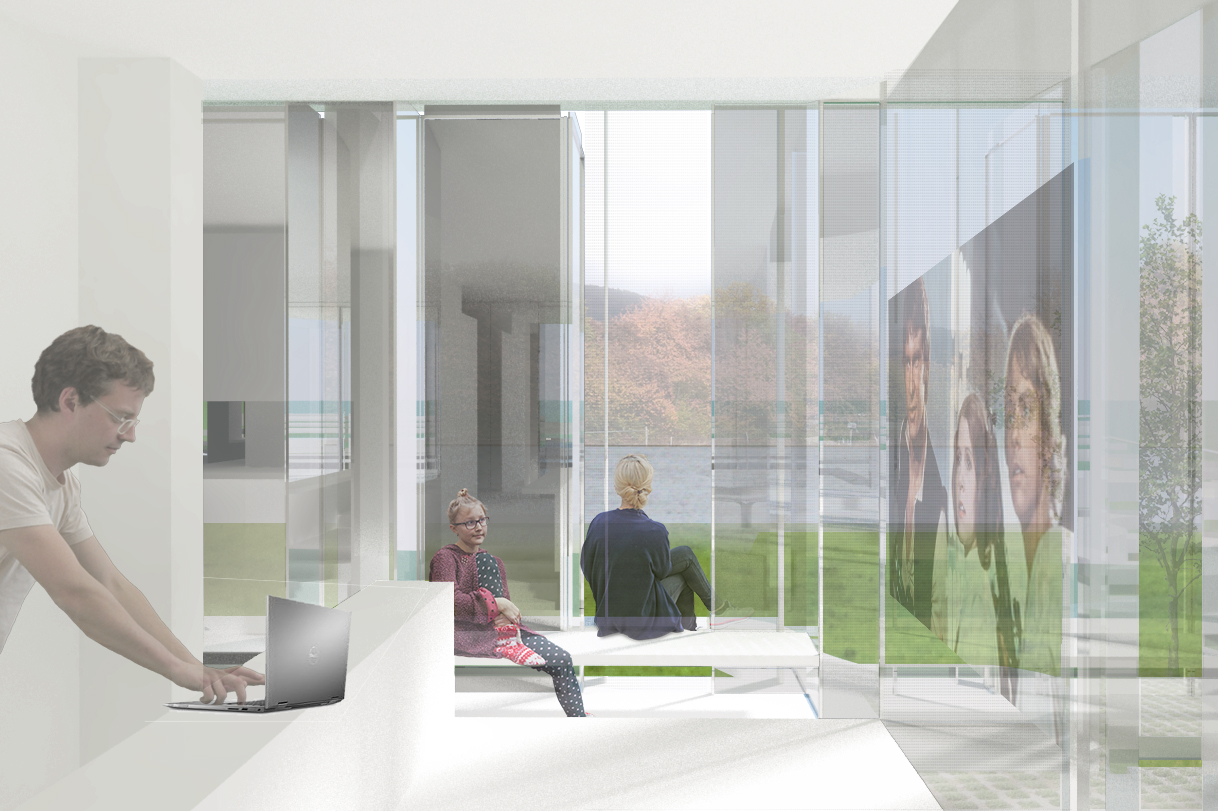

View of the living area, where reflective glass elements immerse your own image in your view to the landscape.

LANDSCAPE-SCENARIOS_00

PROJECT CREDITS:
architect
Jinhee Park AIA
Aida Zouaoui, Samuel Bowstead, Tarek Dada
