9 June 2010
Thu Thiem, Vietnam | 2008

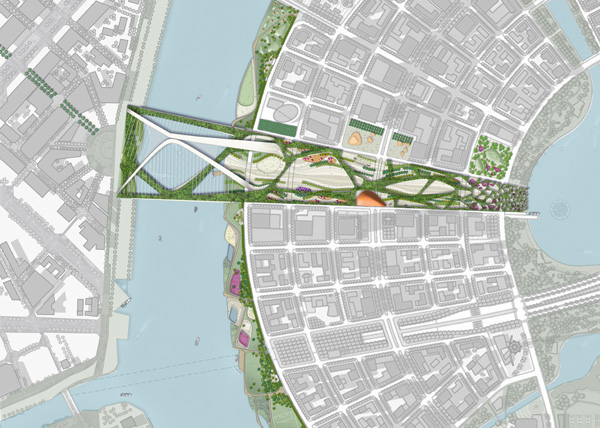

The proposed plaza, park, and bridge hosts ceremonial and everyday events in a new mixed-use district for Ho Chi Minh City in Vietnam. Our project creates a kilometer long plaza, green in its physical presence, green in its construction and dynamically scalable to the events of the city. Floating above the entire plaza and bridge is a monumental pergola, a filigree of steel cables covered in flowering vines, the patterns of the openings creating an ever changing play of shadow and light. This unifying roof turns the plaza into a single super-scaled outdoor living room. At the same time, a panoply of differently scaled openings create a series of perceptual spaces of different sizes, intimate at the lake end and becoming progressively more grand as they approach the Saigon River.
|

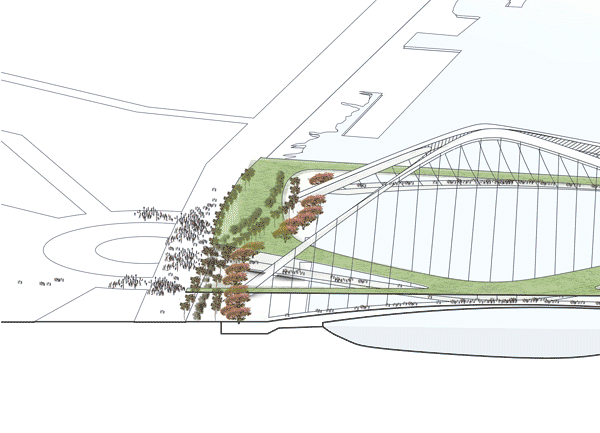

Comparison of Plaza Sizes:A network of paths and spaces defined by the landscape canopy extends over the river and creates the perception of a lengthened plaza that connects the two sections of the city.
|
 |
As well as providing shade for the plaza, the urban scale canopy defines a multitude of programmatic activities and scales to animate the space around the clock.
The canopy and paving work in conjunction as a new infrastructure: Both overhead photo-voltaics in the canopy and under-foot Piezo-electric flooring generates energy which then powers the lighting and public wi-fi installed in the canopy. Runoff water collected from the permeable paving is filtered and re-used for public restrooms and to drip irrigate the canopy vines.
PROJECT CREDITS:
architect
Jinhee Park AIA + John Hong AIA, LEED (principals in charge), Jonathan Louie, Matthew Allen, Frederick Peter Ortner, Brett Albert, Daniel Cashen
landscape architect
Ground, Inc.
RELATED PROJECTS:
print post
8 May 2009
Boston, MA | 2007
[Architecture Boston Feature]
Boston City Hall occupies one of the best pieces of land in Boston. At the intersection of 3 major subway lines and at the geographical heart of downtown, this is an ideal location for a dynamic civic center; however the current City Hall is accused of failing to interface effectively with the public. We propose taking advantage of a latent urban potential: The site is the missing link between the historic Fenway Park and the new Rose Kennedy Greenway. By allowing the plaza to connect these important open spaces, City Hall will sit pavilion-like in a park, much like a New England meeting house at the center of urban life. Opening the City Hall to its surroundings and reprogramming it with public functions such as a meeting hall, a community/ cultural center, and a civic history museum will also make it an integral part of Boston's historical 'Freedom Trail.'
 |
 |

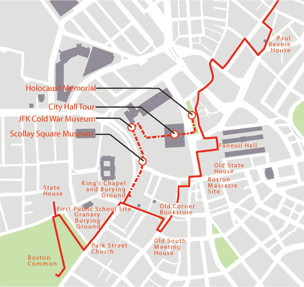

The plaza has the latent potential to provide the much needed connection between Fenway Park and the Rose Kennedy Greenway (left). New public programs at City Hall can allow it to become a new addition to the 'Freedom Trail.' (right).
Revealing the red, green, and blue subway lines brings new public activity to the surface of the plaza.

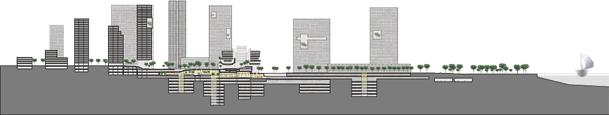

Section through the plaza: Natural light and ventilation brought to the subway levels can also allow for new programs to be added underneath the plaza.
PROJECT CREDITS:
architect
Jinhee Park AIA + John Hong AIA/LEED (principals in charge), Frederick Peter Ortner, Catarina Marques, Jiseok Park
RELATED PROJECTS:
print post
8 February 2009
Boston, MA | 2005
[honorable mention, international competition]

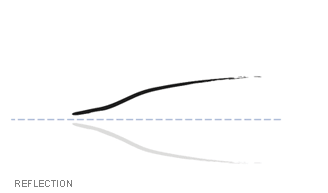

It is the reciprocal edge between water and land that makes an island an extraordinary natural resource and public amenity. As an urban gateway to the Boston Harbor Islands, the structural roof-form or this design becomes a literal/metaphorical reference to this junction of water and land. Where the 'actual' site above the Central Artery prohibits excavation, the curvilinear roof-form is reflected onto a polished terrazzo map of the harbor islands implying the shoreline topography. This roof also collects runoff for reuse in the building and landscape while its downspouts become part of a demonstration water/land garden.
Structural concept: like a flat sheet, a flat slab of concrete will deflect and fail (left). Folding this sheet greatly increases its strength.

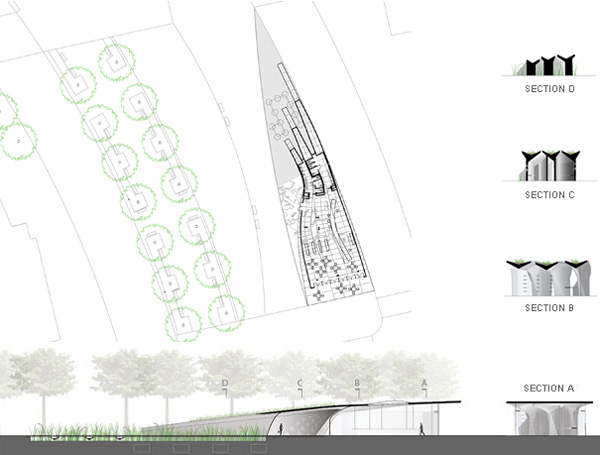

The section of the building transforms from folded to flat – open public space containing ticketing and exhibition areas to private interior space containing restrooms and wash areas.
A singular shape performs in multiple ways.

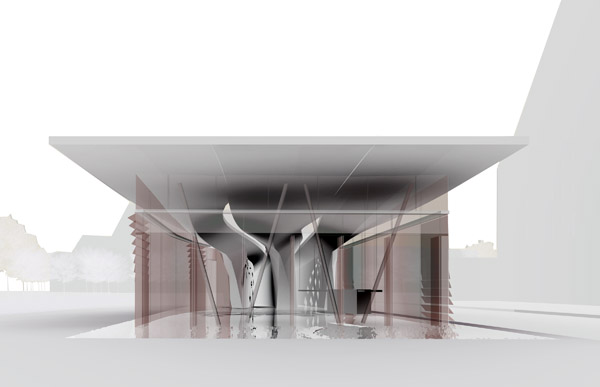

In the evening, the pavilion becomes part of the linear eventscape illuminating the new greenway.
PROJECT CREDITS:
architect
Jinhee Park AIA (principal in charge), John Hong AIA/LEED (collaborating principal), Sadmir Ovcina, Frederick Peter Ortner, Erik Carlson, Hyeyoung Kim
structural engineer
Jaeseoung Lee, Weidlinger Associates Inc.
